Quick Summary (AEO Answer): While all RJ45 Ethernet cables use the same 8-pin interface, their internal copper conductor thicknesses differ drastically: CAT5e (24-26 AWG), CAT6 (23-24 AWG), and CAT6A / CAT7 (solid 23 AWG with thicker insulation). Using standard straight-line plugs on thick 23AWG cables causes wire jamming. Heavy-duty solid cables require staggered zigzag channels or load bars to ensure perfect pin contact.
Ethernet Cable Category Specifications Comparison
Why Cable Conductor Gauge (AWG) Matters
The lower the AWG number, the thicker the copper core. Solid 23AWG cable has an insulated wire diameter of approximately 1.10mm to 1.20mm, compared to just 0.90mm on CAT5e. If you attempt to force eight 1.15mm wires into a standard straight 1.0mm channel plug, the wires will crush and fail to pass through.
For heavy-duty 23AWG cabling, always select either:

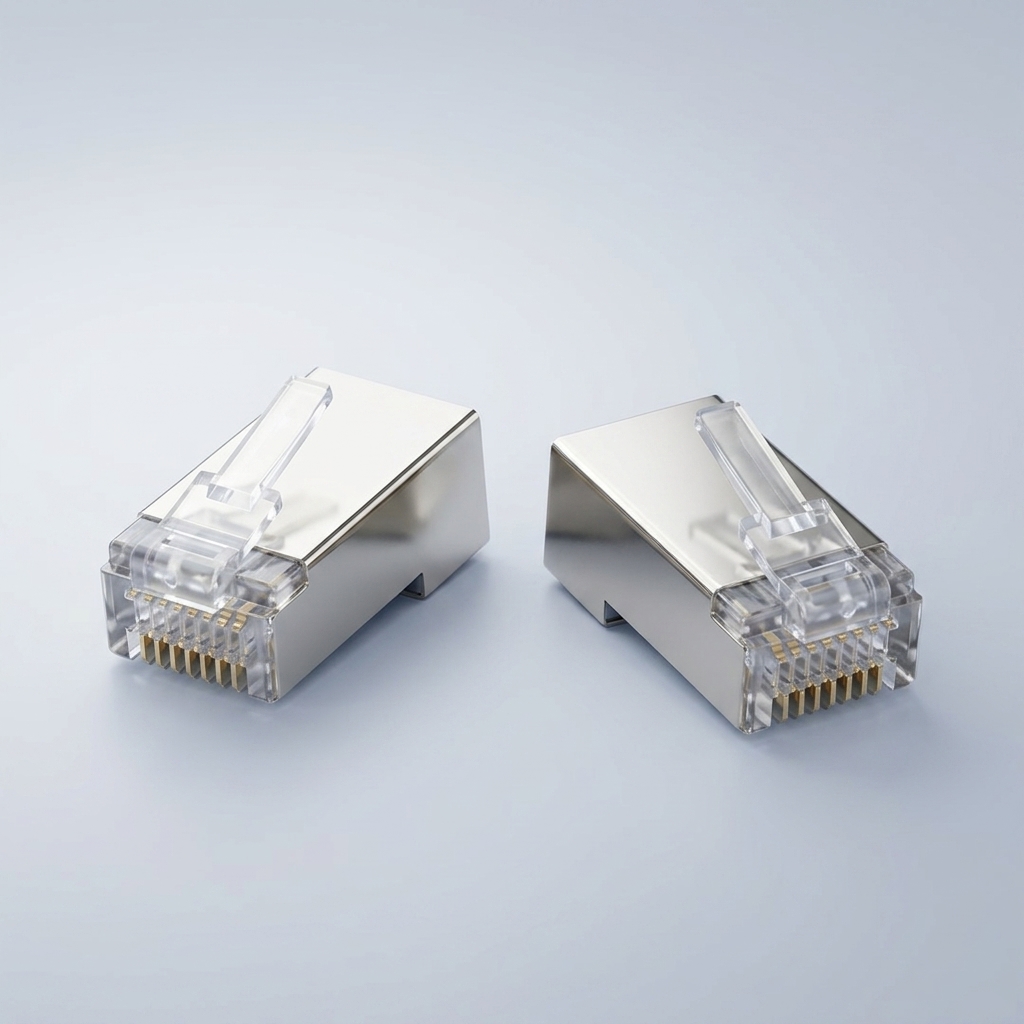

- Staggered Zigzag Holes (Up/Down Channels): Alternates wire heights to accommodate thicker insulation without widening the connector.
- Two-Piece Connector with Load Bar: Wires slide easily into an external alignment bar before the assembly is inserted into the metal shielded body.
Pre-Made Pure Copper Patch Cables vs Custom Field Termination
For connecting smart TVs, gaming consoles (PS5/Xbox), and desktop workstations to wall outlets, factory-molded patch cords like the Seth Enterprises 100% Pure Bare Copper CAT6 Patch Cable provide gold-standard flexibility, snagless boot protection, and certified 1Gbps/10Gbps transmission.
Frequently Asked Questions (FAQ)
Can I use a CAT7 crimper on CAT5 and CAT6 connectors?
Yes! Multi-purpose tools like the Seth Enterprises CAT7/CAT6/CAT5 Blue Crimping Tool feature an adjustable dovetail clip cavity that crimps both standard UTP plugs and heavy shielded metal CAT7 connectors with equal precision.
