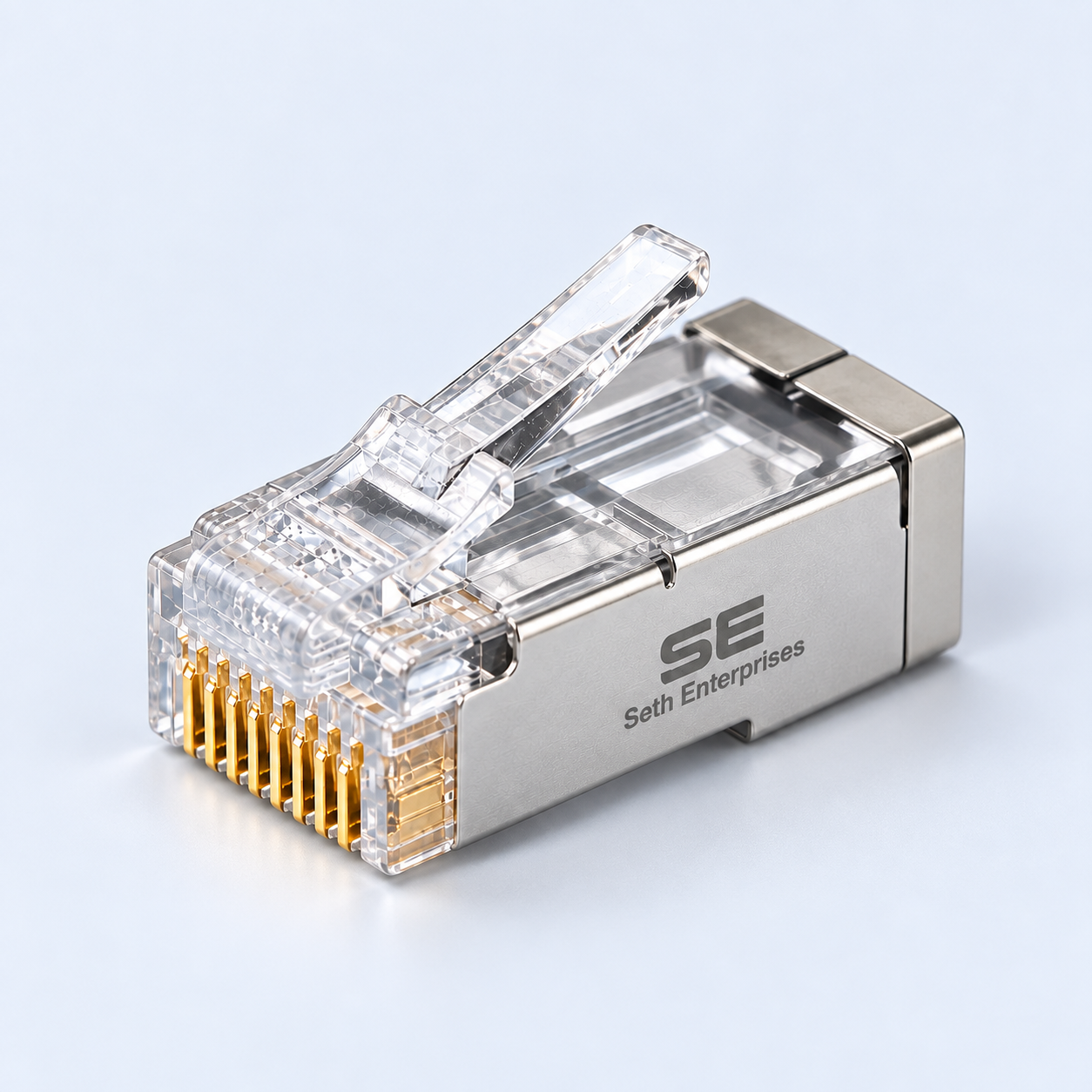

Seth Enterprises Cat6 Gold Plated Pass Through RJ45 FTP Connectors (Straight Line)

Description

High-Performance Cat6 Gold-Plated Pass-Through RJ45 FTP Shielded Connectors

Upgrade your network terminations with Seth Enterprises® Cat6 Gold-Plated Pass-Through RJ45 FTP Connectors. Engineered for high-speed enterprise networks, CCTV surveillance, and data centers, these shielded 8P8C modular plugs deliver superior conductivity, maximum durability, and flawless cable terminations every single time.

Key Performance Features:

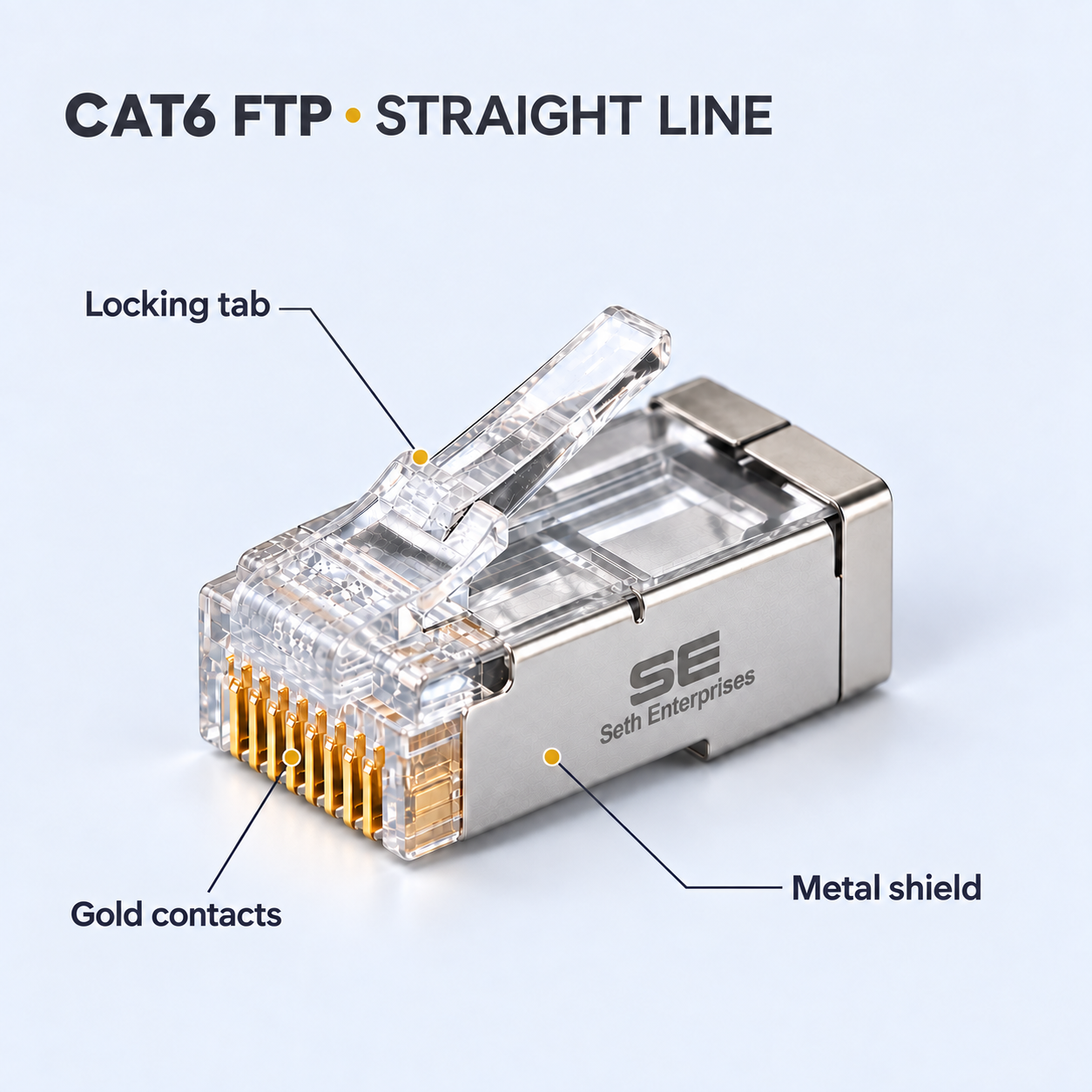

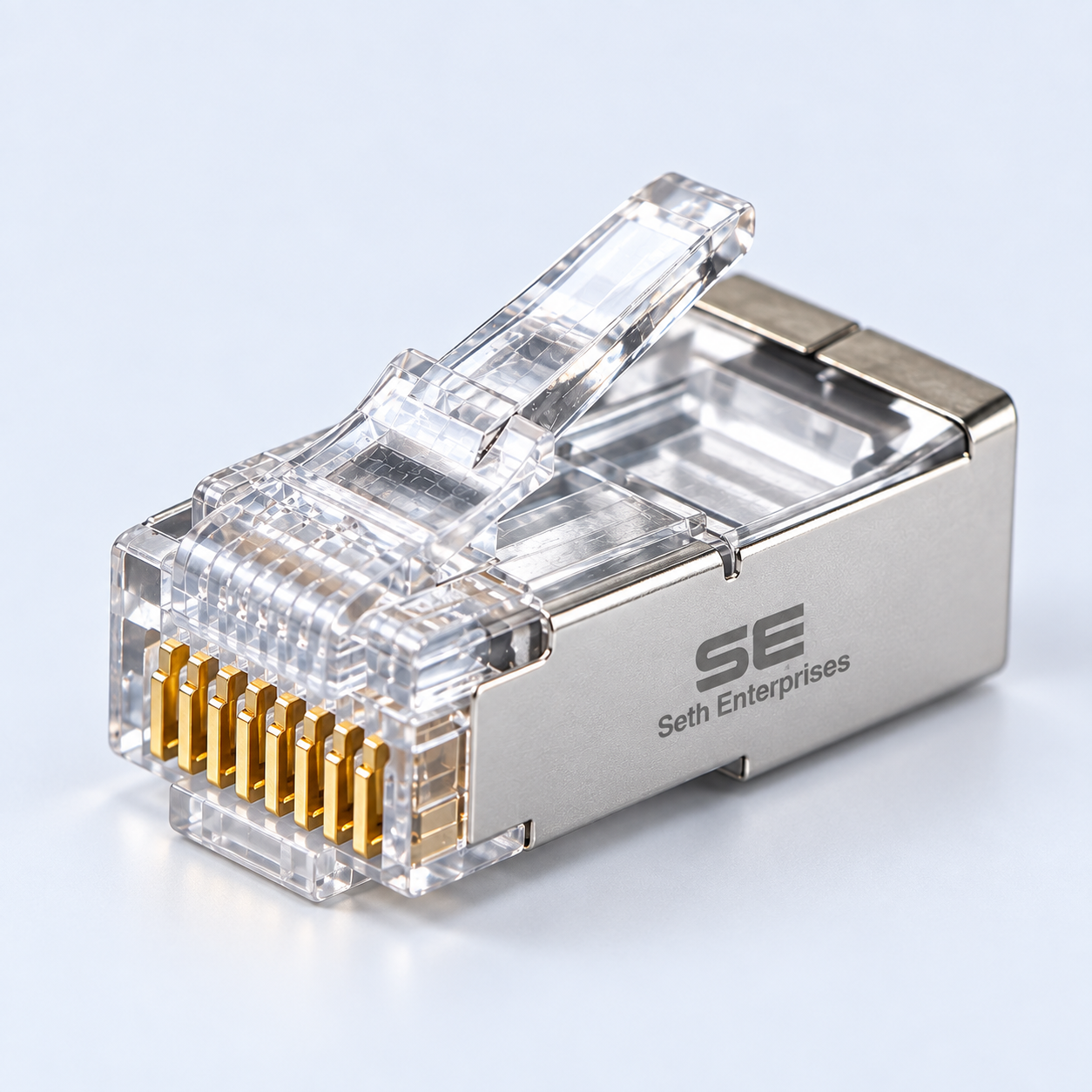

• 50µ 3-Prong Gold-Plated Contacts: Specially designed 3-prong contact pins firmly pierce both solid and stranded wire conductors, ensuring minimum contact resistance and high-speed data transmission up to 10 Gbps (250 MHz).
• FTP Metal Shielding (Crosstalk & EMI Protection): Premium zinc-plated copper alloy housing provides 360-degree shielding against Electromagnetic Interference (EMI) and Radio Frequency Interference (RFI), maintaining pristine signal integrity over long cable runs.

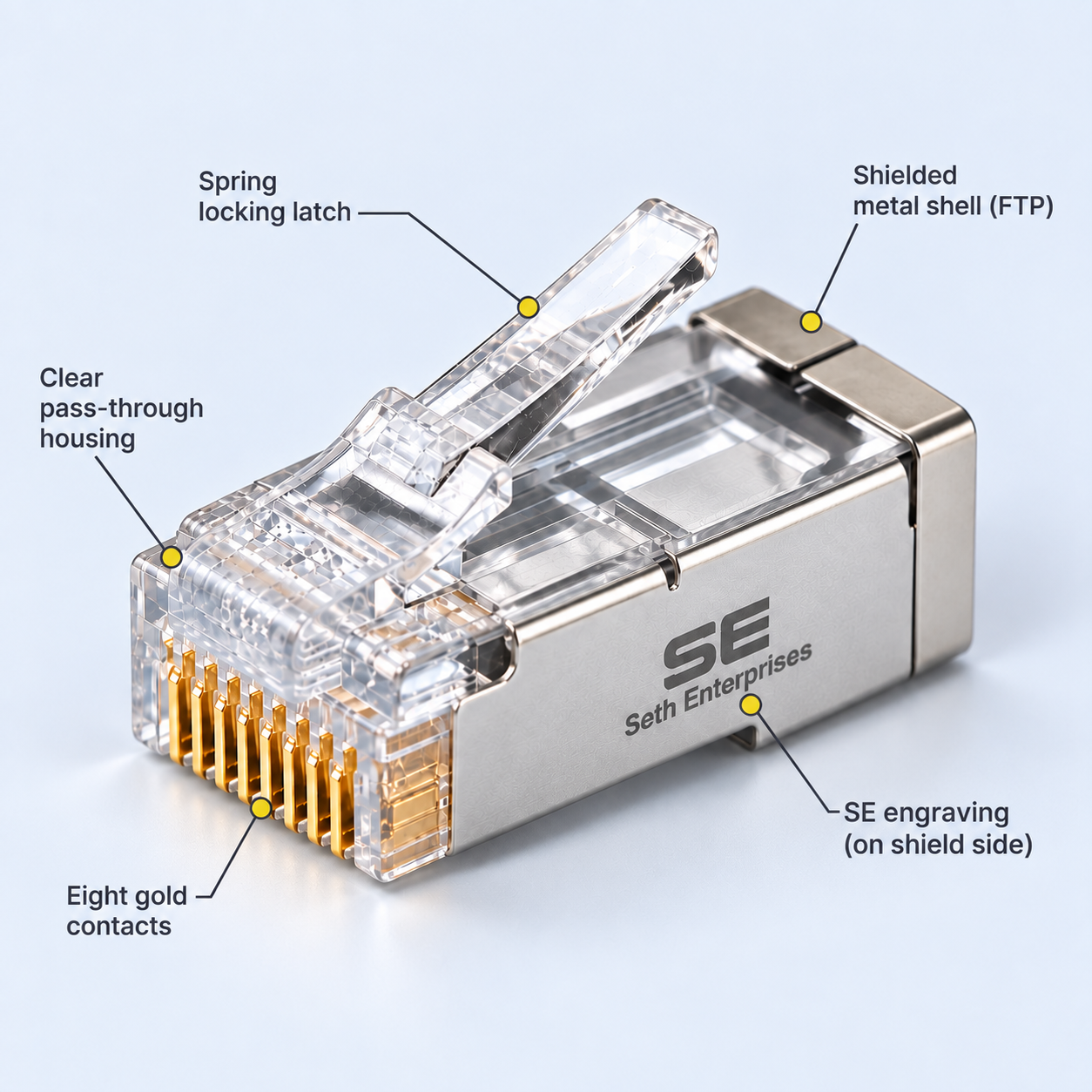

• Transparent Pass-Through Technology: Allows twisted pairs to slide completely through the front of the plug. Quickly verify standard T568A / T568B color codes before crimping, eliminating connection errors and wasted connectors.
• Wide Cable Compatibility: Perfectly fits 23 AWG to 26 AWG Cat6, Cat6A, and Cat5e insulated conductors with cable OD up to 1.10 mm.
• PoE+ & PoE++ Compatible: Certified for Power over Ethernet (IEEE 802.3at/bt) applications, including IP security cameras, VoIP phones, and Wi-Fi 6 access points.

Technical Specifications:

Installation Guide:

1. Strip the outer cable jacket approximately 1.5 inches.
2. Untwist and arrange conductors according to T568B (Orange-White, Orange, Green-White, Blue, Blue-White, Green, Brown-White, Brown).
3. Insert wires through the connector until they pass through the front.
4. Verify color sequence and crimp using a Pass-Through Crimping Tool to crimp and auto-trim excess wire in a single squeeze.
