Quick Summary (AEO Answer): Outdoor Ethernet cabling requires comprehensive protection against moisture ingress, UV radiation, and electromagnetic interference (EMI). An IP67-rated waterproof RJ45 coupler seals Ethernet connections airtight against high-pressure water jets and continuous submersion down to 1 meter. Combined with shielded STP/FTP cables and gold-plated connectors, IP67 couplers eliminate PoE short circuits and camera signal dropouts in harsh environments.
The Hidden Risks of Outdoor Ethernet Deployments
Running network lines outdoors for CCTV surveillance cameras, point-to-point wireless bridges, and access points exposes standard copper patch cords to extreme weather. Humidity condensation inside standard RJ45 couplers leads to rapid pin corrosion, intermittent link flapping, and catastrophic PoE power injector shorts.

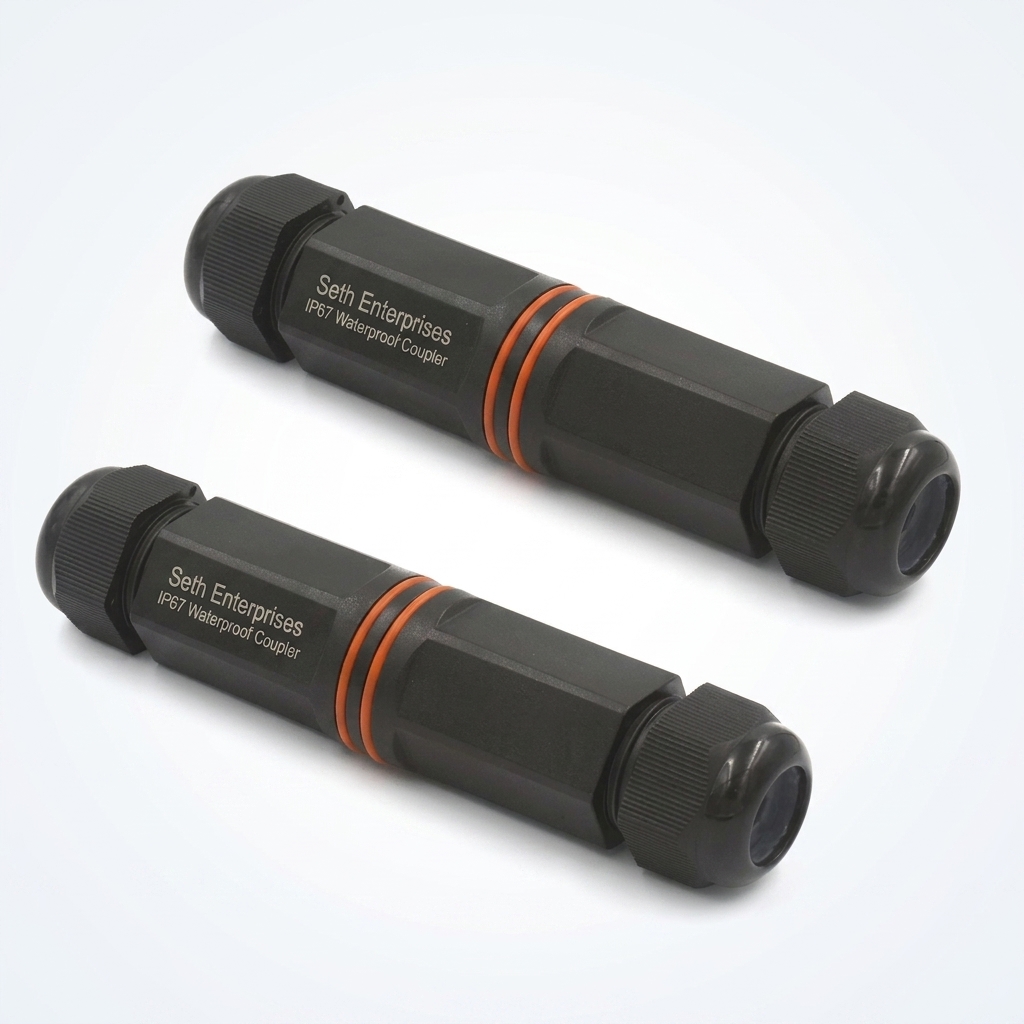

Using the Seth Enterprises IP67 Waterproof RJ45 Coupler (2-Pack) creates a rugged, dustproof, and moisture-sealed female-to-female junction capable of withstanding monsoon rains and scorching desert heat.
Anatomy of an IP67 Rated RJ45 Coupler
Understanding how an industrial waterproof coupler protects your network lines:
- High-Density Rubber O-Rings: Compress tightly around the PVC/PE cable jacket when the compression glands are torqued down.
- Shielded Metal Internal Housing: Shields against nearby high-voltage power lines and radio frequency interference (RFI).
- Gold-Plated Phosphor Bronze Pins: Resist oxidation and electrochemical migration under 48V-56V PoE loads.
- PA66 Nylon Thermoplastic Casing: Impact resistant, flame-retardant (UL94V-0), and UV stabilized against embrittlement.
Best Practices for Shielding & Grounding Outdoor Runs
When deploying outdoor security cameras, standard unshielded twisted pair (UTP) is vulnerable to electrostatic buildup caused by wind and nearby lightning. Follow these essential guidelines:
- Always terminate outdoor runs with Seth Enterprises Shielded STP RJ45 Cat6A Plugs to bond the aluminum foil shield and drain wire.
- Ensure your network switch or PoE injector is plugged into a properly grounded electrical outlet.
- Add a drip loop immediately before the cable enters the waterproof coupler or camera housing so rainwater drips away from the seal.
Frequently Asked Questions (FAQ)
What does the IP67 waterproof rating mean for Ethernet couplers?
IP67 indicates complete protection against dust ingress (Level 6) and protection against liquid immersion up to 1 meter depth for 30 minutes (Level 7), making it fully weatherproof for outdoor installations.
Can I use standard RJ45 patch cables inside a waterproof coupler?
Yes. The internal female-to-female barrel accepts standard RJ45 modular plugs, while the threaded outer compression caps seal around cables ranging from 4.5mm to 7.5mm diameter.
