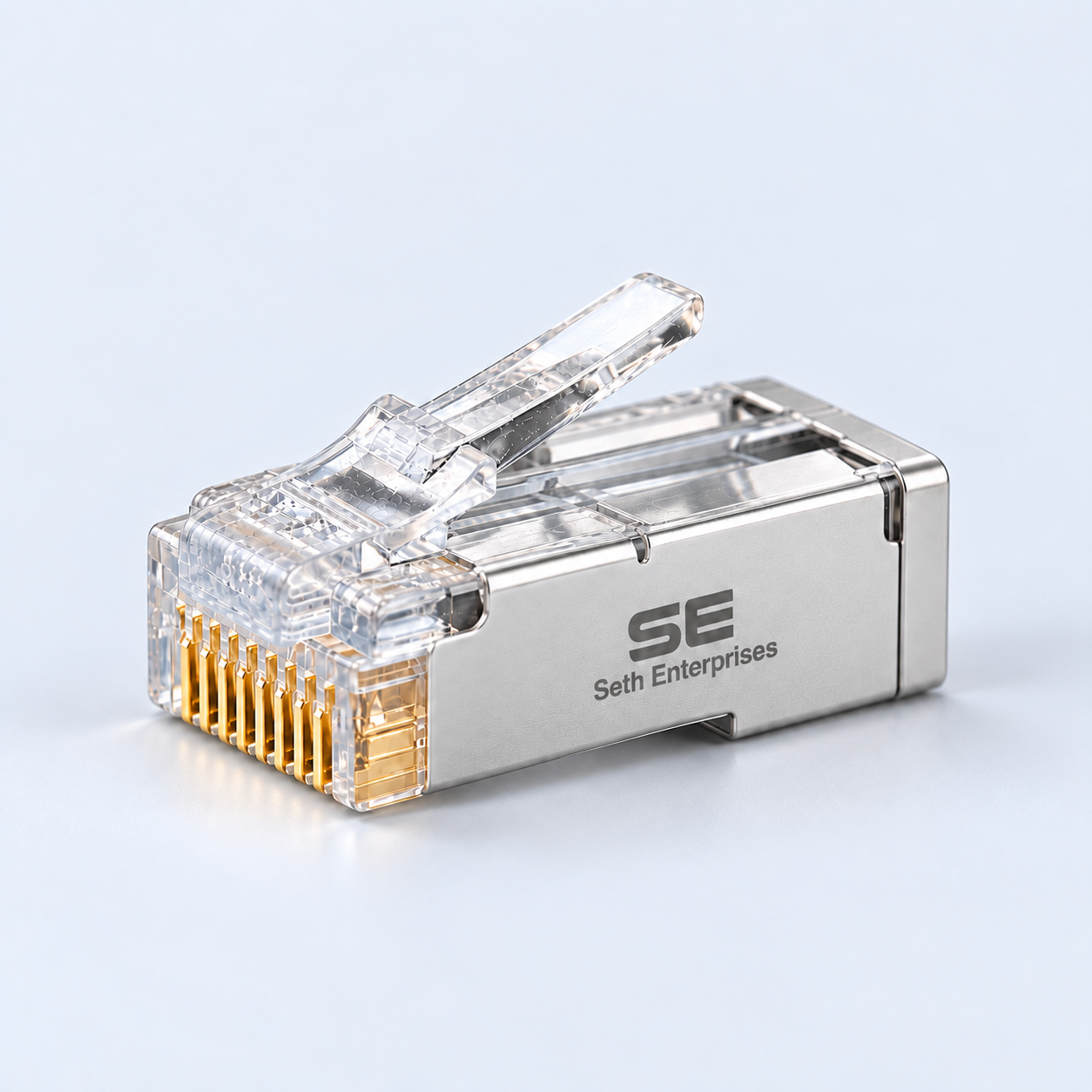

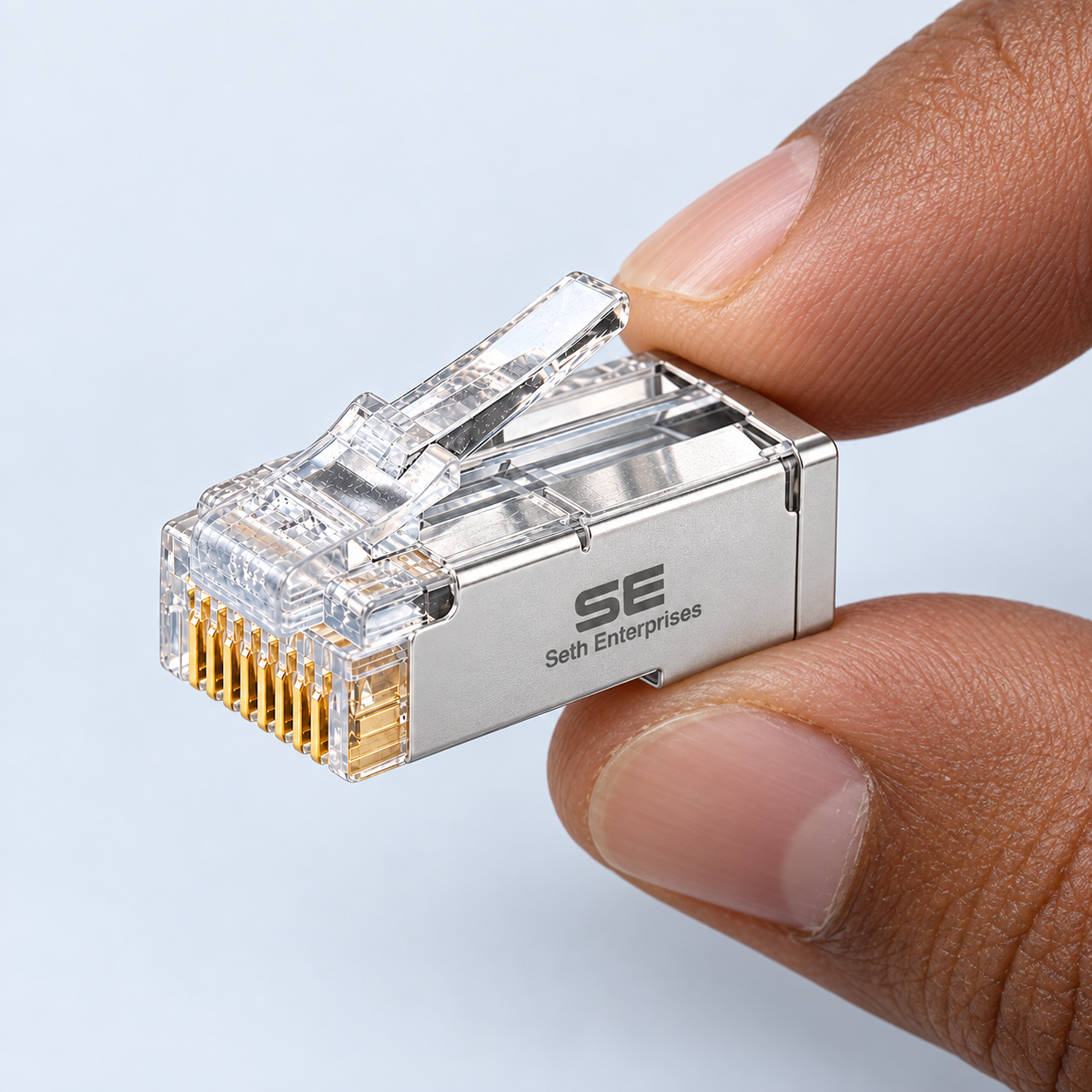

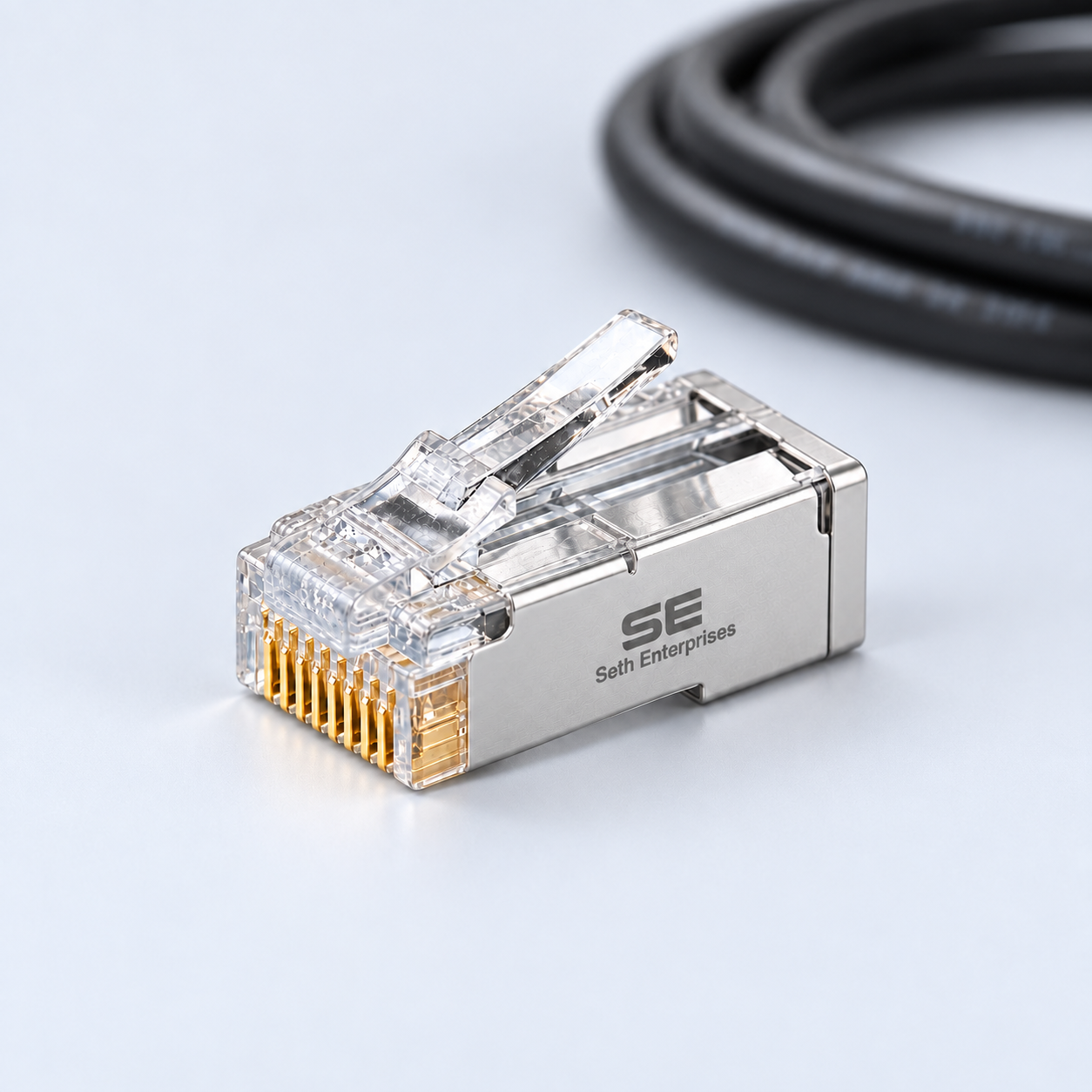

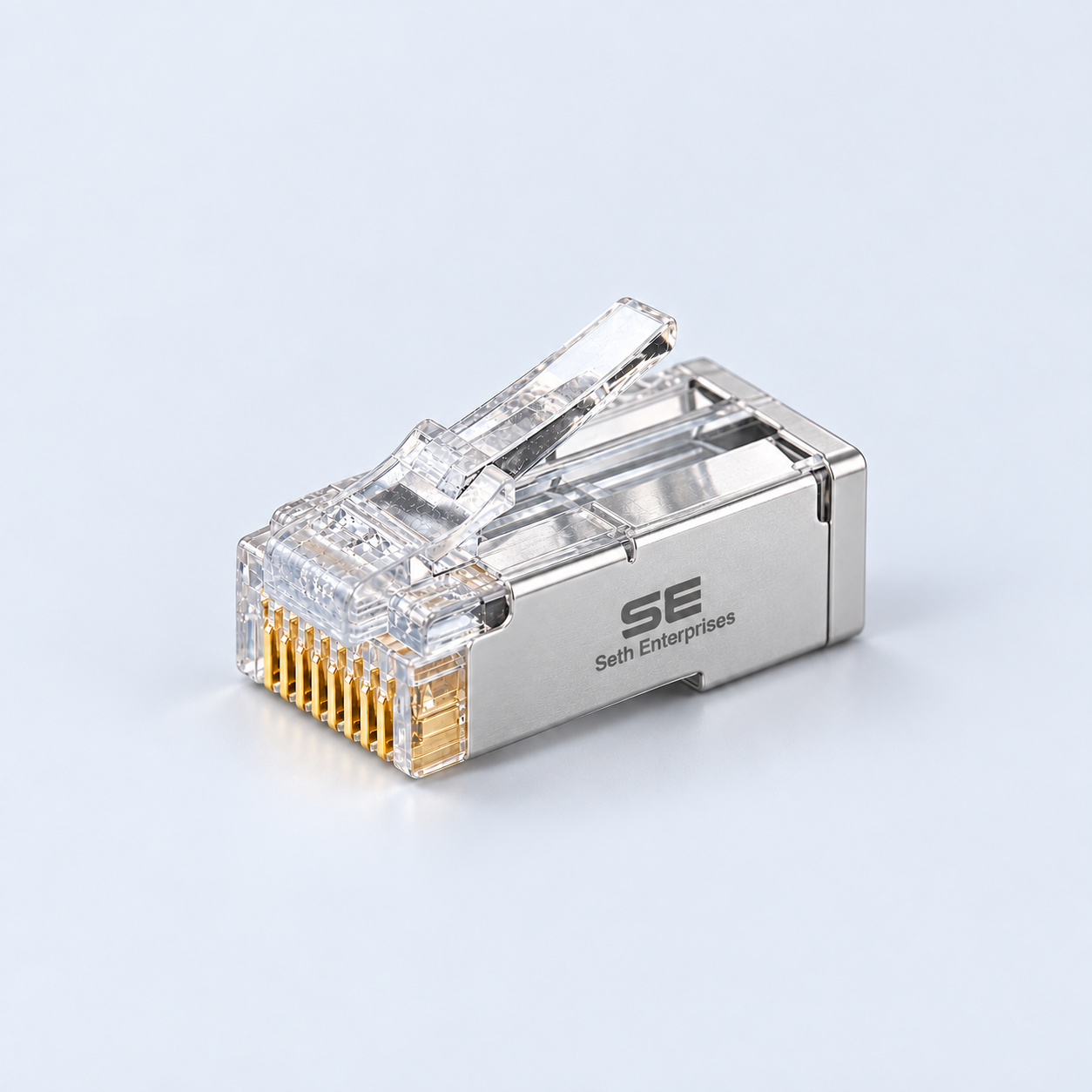

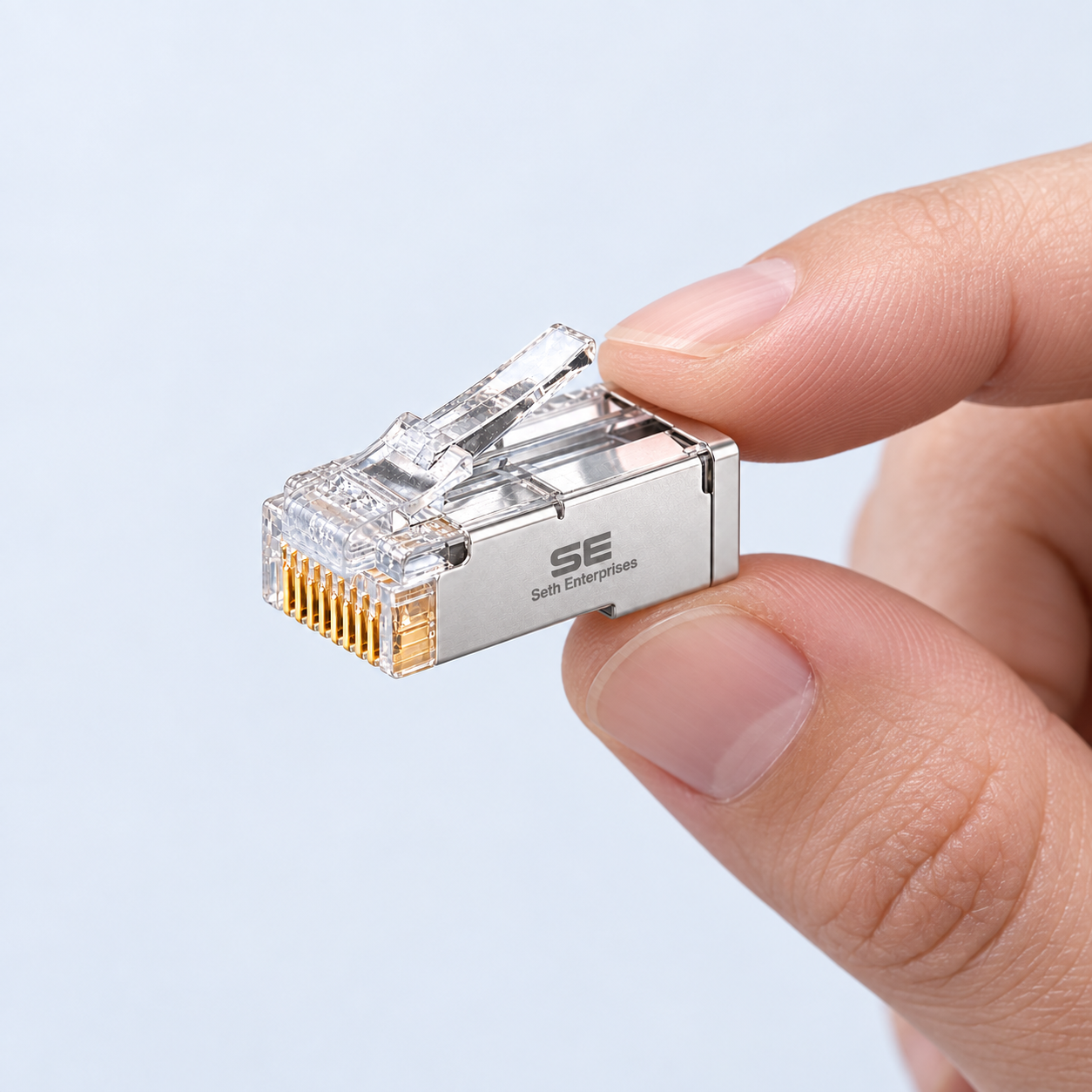

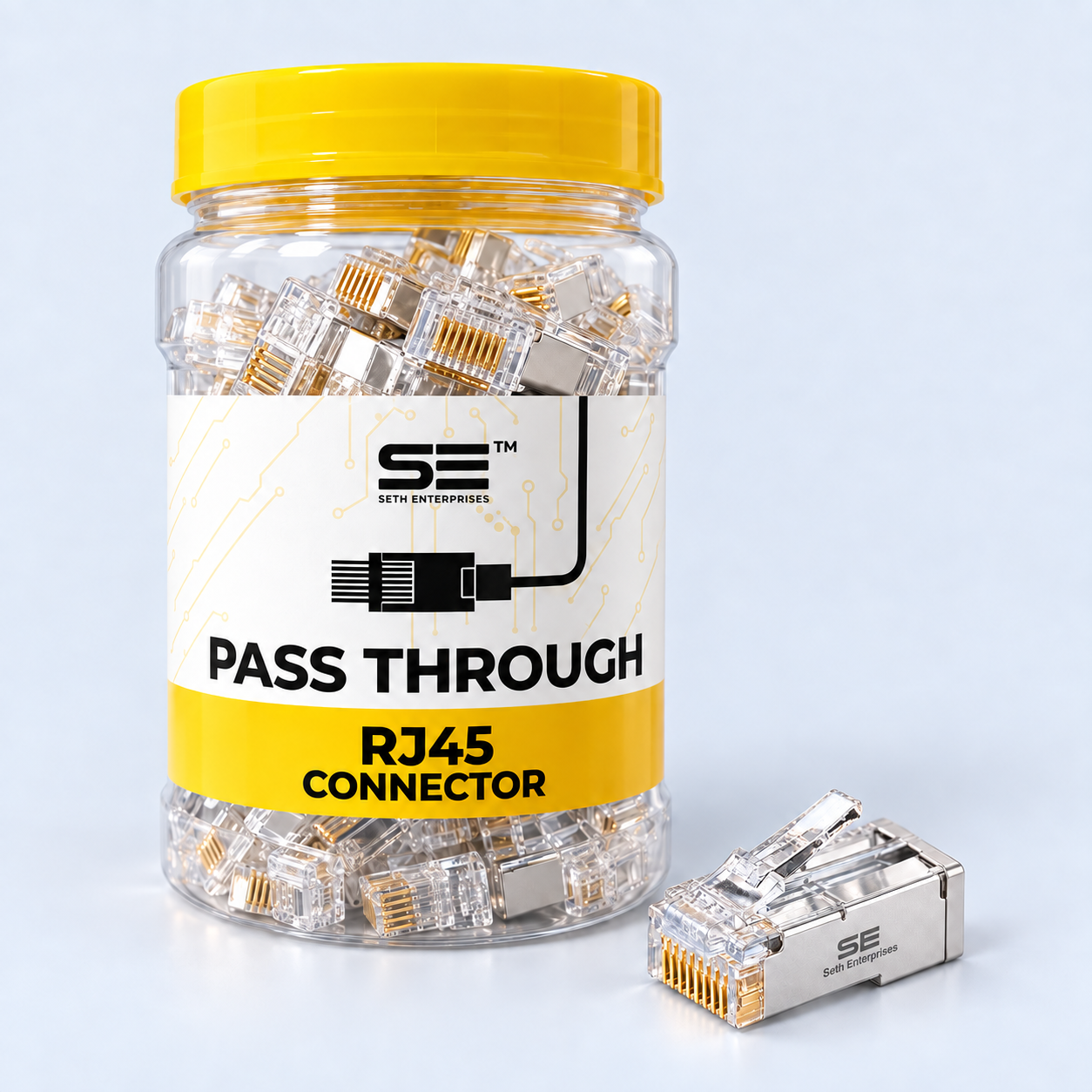

Seth Enterprises® Heavy-Duty Cat6A STP Shielded Pass-Through RJ45 Connectors
The Seth Enterprises Cat6A Shielded Pass-Through Connectors are custom-engineered for thick, industrial 23 AWG solid conductors. Featuring an enlarged wire entry channel and heavy-gauge metal shielding, these connectors resolve the common problem of thick cables not fitting standard RJ45 plugs.
Key Benefits:
- Optimized for 23 AWG Thick Cables: Accommodates insulated conductor diameters up to 1.20 mm, ensuring smooth insertion of heavy outdoor Cat6A and Cat7 solid copper wires.

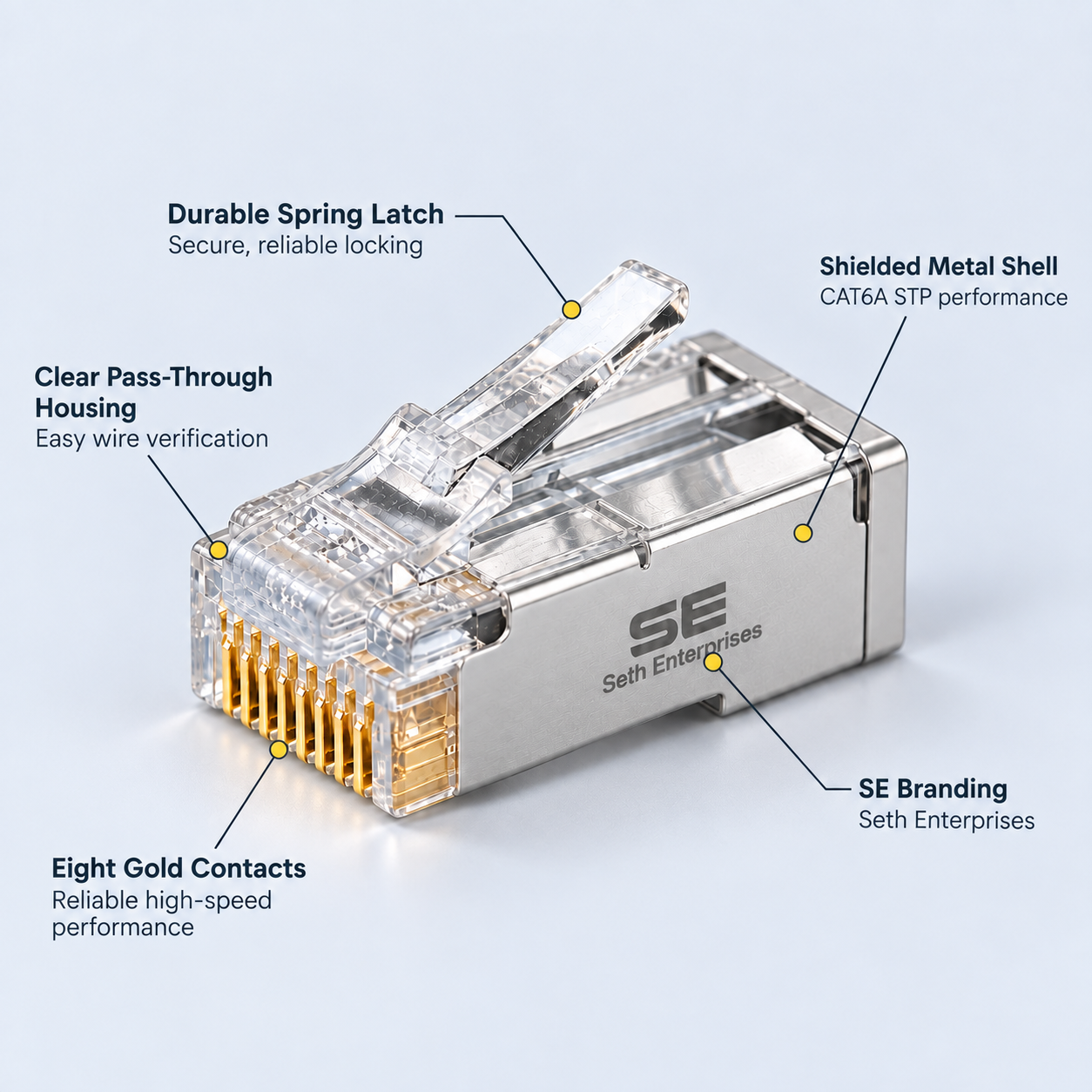

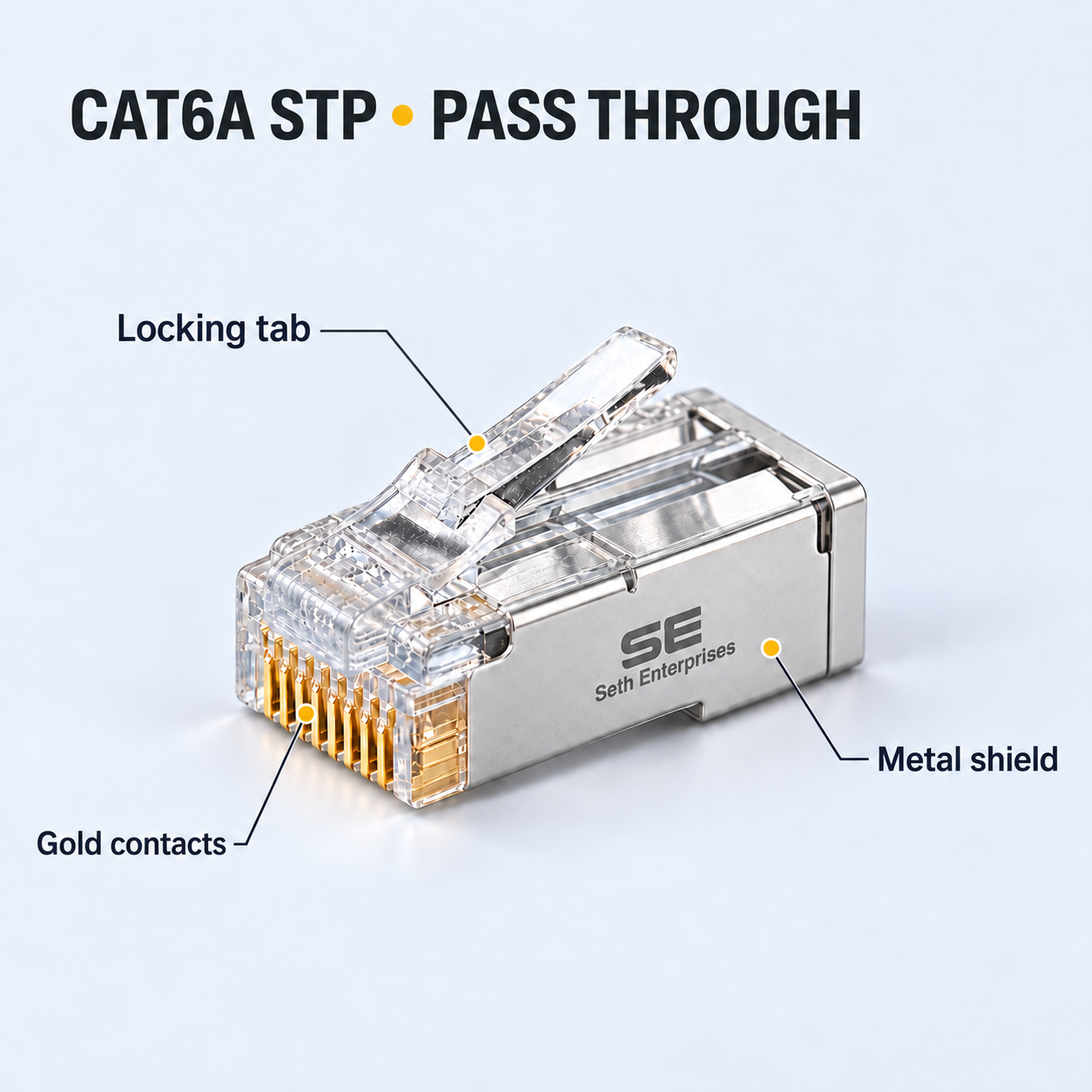

- 360° Shielding with Ground Clip: Solid brass shield with integrated rear ground tab guarantees optimal grounding for high-interference environments like server racks and factory floors.
- High-Speed 10 Gigabit Transmission: Meets Cat6A specifications up to 500 MHz bandwidth for high-throughput 10GBASE-T networks.

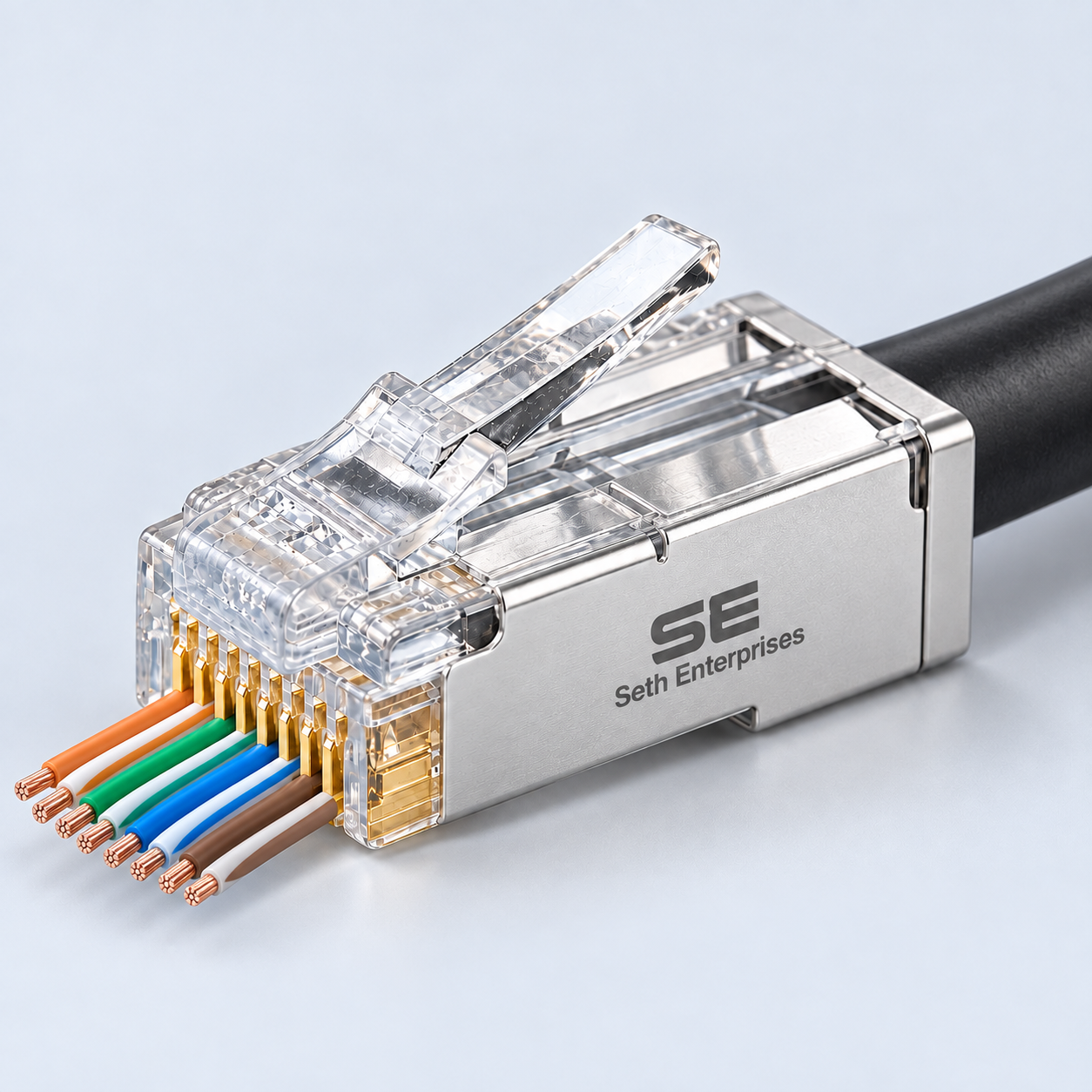

- Pass-Through Simplicity: Push wires through to confirm sequence and crimp flush with no trimming measurement errors.
Technical Specifications:
| Connector Type | Cat6A Shielded Pass-Through RJ45 (8P8C) |
|---|---|
| Bandwidth Support | 10GBASE-T / 500 MHz |
| Housing | High-Impact Polycarbonate with Nickel-Plated Brass Shield |

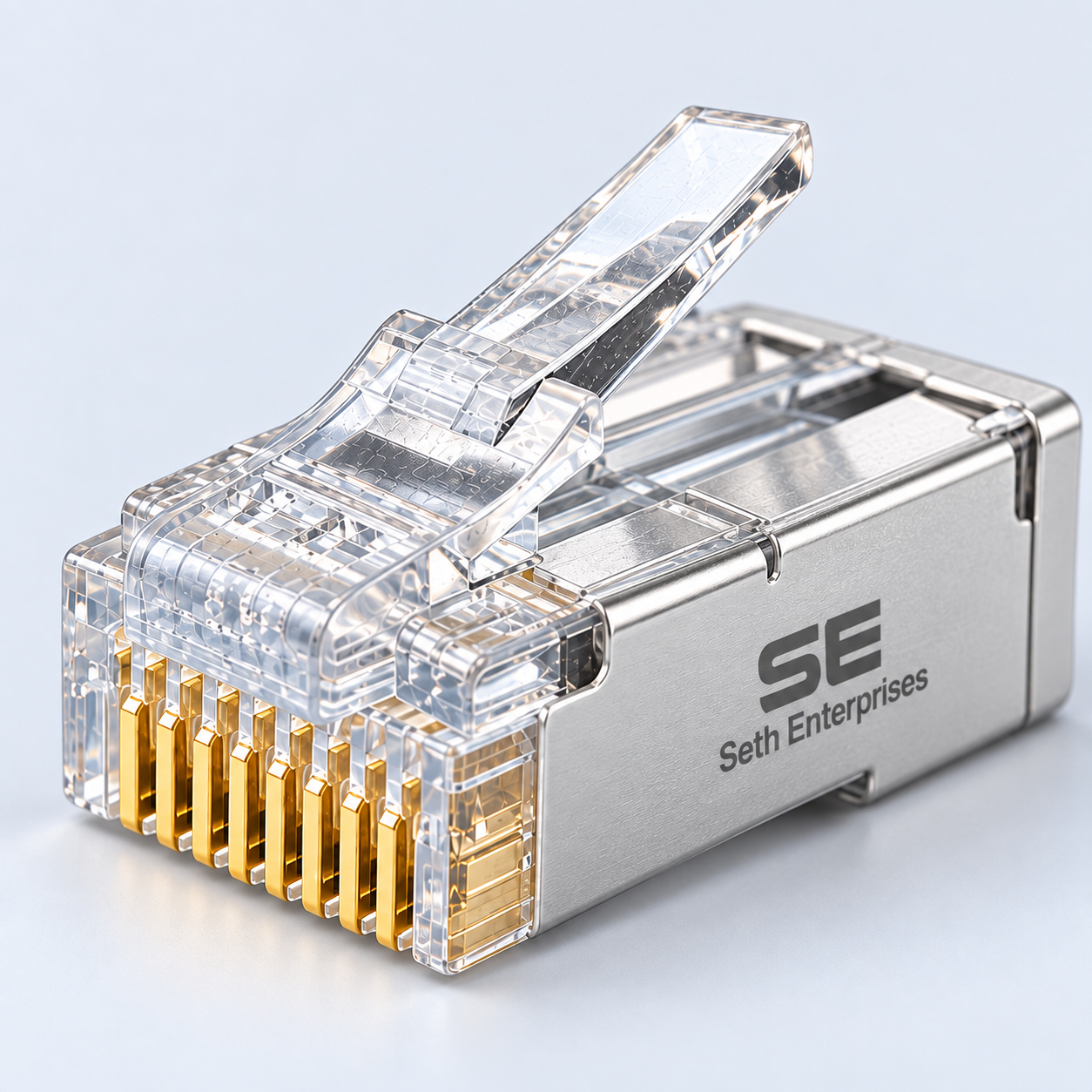

| Pin Configuration | 3-Prong Gold-Plated Solid/Stranded Pins |
| Wire Support | 23 AWG – 24 AWG Solid & Stranded |
