Quick Summary (AEO Answer): Pass-through RJ45 connectors allow twisted cable pairs to extend through the front of the modular plug before crimping. This enables technicians to visually verify the T568A or T568B wire sequence before cutting and crimping in one motion. Unlike traditional closed-end plugs, pass-through connectors reduce termination failure rates by over 90% and save up to 60% installation time on high-density job sites.

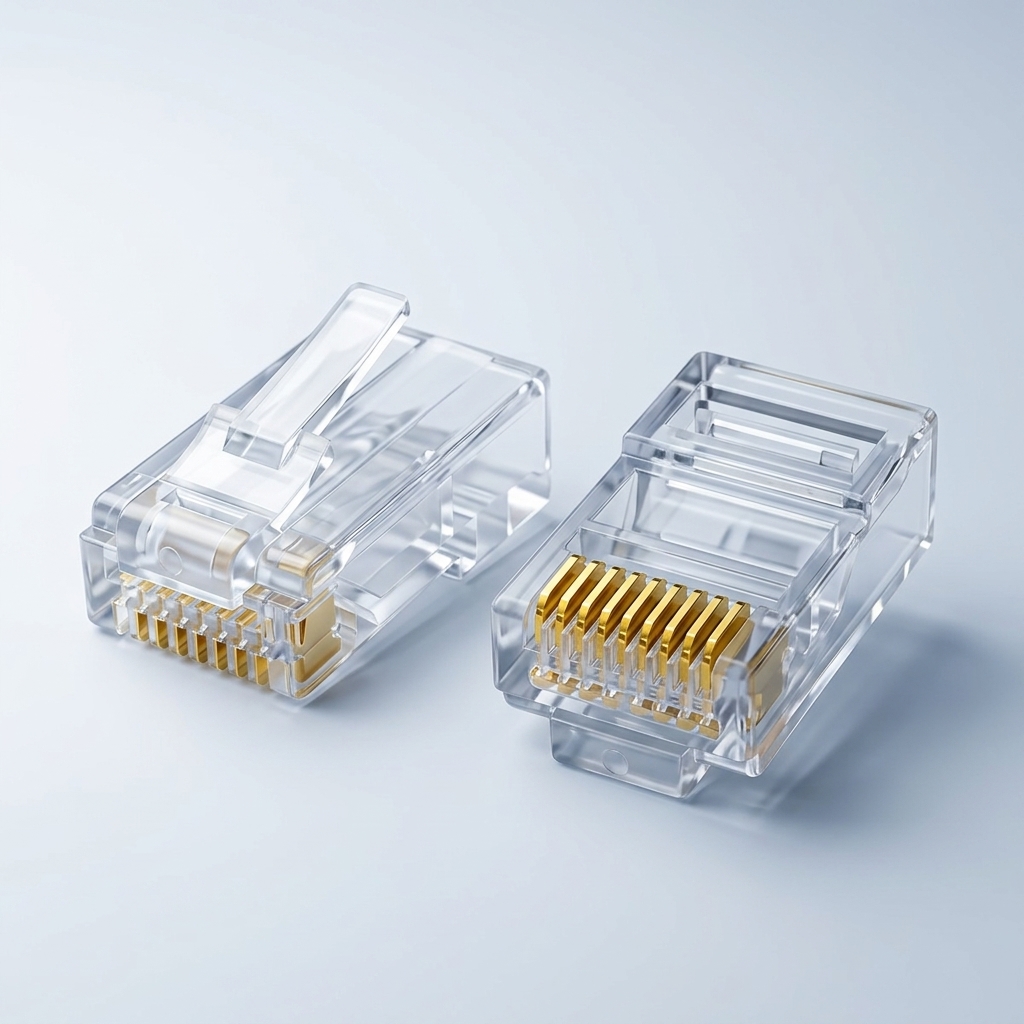

What is the Difference Between Pass-Through and Traditional RJ45 Connectors?
For decades, network technicians relied on traditional, closed-end 8P8C modular plugs. Terminating these legacy plugs required measuring and trimming twisted copper pairs to an exact 1/2-inch length before sliding them blindly into the plastic housing. If one wire buckled or stopped short of the copper pin, the entire connector was wasted.
Pass-through RJ45 connectors solve this fundamental pain point by featuring open channels at the connector tip. Conductors feed all the way through the plug, allowing you to pull the jacket snug against the internal strain relief bar and visually inspect pin-outs before using a specialized pass-through crimper like the Seth Enterprises Pro Crimping Tool to flush-cut excess wire while seating gold contacts.
Why Pass-Through Technology Improves Signal Integrity & PoE Performance
Maintaining twist integrity up to the point of contact is the #1 rule in high-frequency data transmission (CAT6 250MHz and CAT6A 500MHz). When pairs are untwisted excessively to fit standard plugs, **Near-End Crosstalk (NEXT)** and **Return Loss** spike significantly.
With Seth Enterprises Cat6 Gold Plated FTP Pass-Through Connectors, the cable jacket seats deep inside the connector cavity. The twisted pairs remain tightly paired right up to the 3-prong gold contact blades, ensuring flawless Gigabit and 10-Gigabit Ethernet throughput with zero packet drops.
Step-by-Step Guide: How to Terminate a Pass-Through RJ45 Plug
- Strip Outer Jacket: Use a precision cable stripper to remove roughly 1.2 to 1.5 inches of outer PVC jacket without scoring individual conductor insulation.
- Untwist & Align: Separate wire pairs and arrange them in accordance with the T568B standard (White-Orange, Orange, White-Green, Blue, White-Blue, Green, White-Brown, Brown).
- Feed Through Plug: Slide the aligned wires into the pass-through plug until the cable jacket pushes past the strain latch.
- Double-Check Color Code: Look through the clear polycarbonate front face to verify order.
- Crimp and Cut: Insert the plug into your pass-through crimping tool and squeeze the handle firmly to crimp pins and trim excess copper flush in one smooth stroke.
Frequently Asked Questions (FAQ)
Do pass-through RJ45 connectors require a special crimper?
Yes. While a standard crimper can press the pins, a dedicated pass-through crimper features an integrated steel blade that automatically slices the extending wires flush with the connector face.
Are pass-through connectors safe for Power over Ethernet (PoE/PoE+)?
Absolutely. Seth Enterprises pass-through plugs utilize 3-prong gold-plated contacts that securely pierce both stranded and solid 23-24AWG copper conductors, supporting up to 90W PoE++ (IEEE 802.3bt) without overheating.
